TEICHMANN CRANES delivers container crane in just 4 months to leading manufacturer of expanded glass

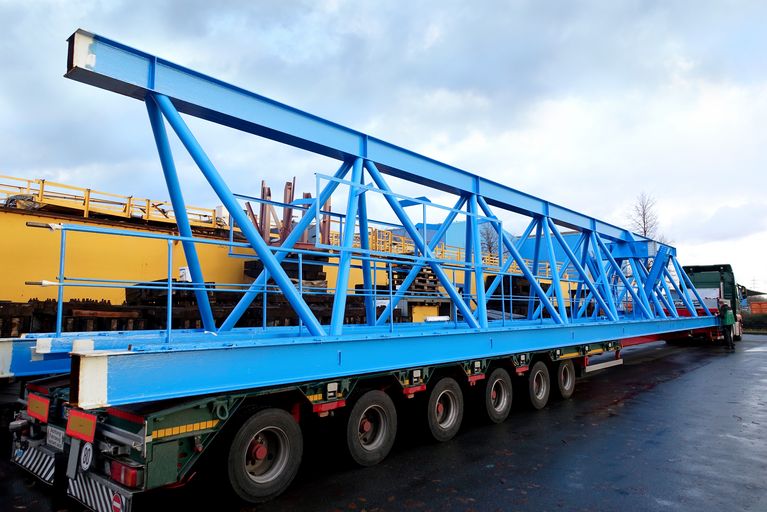

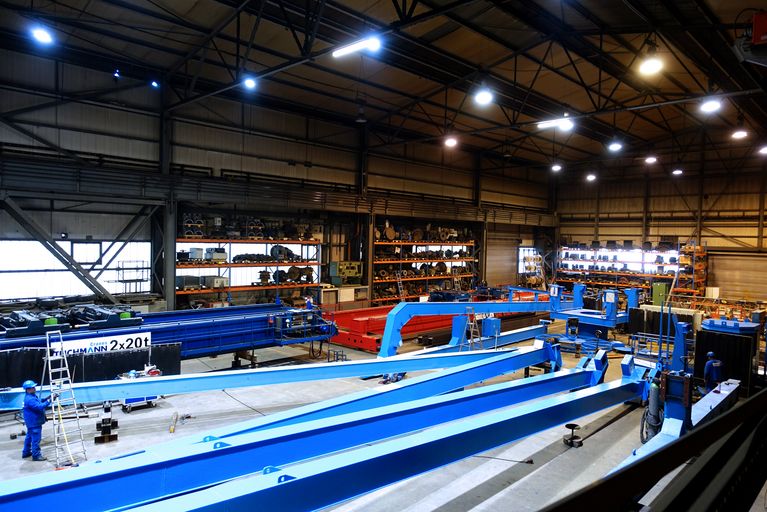

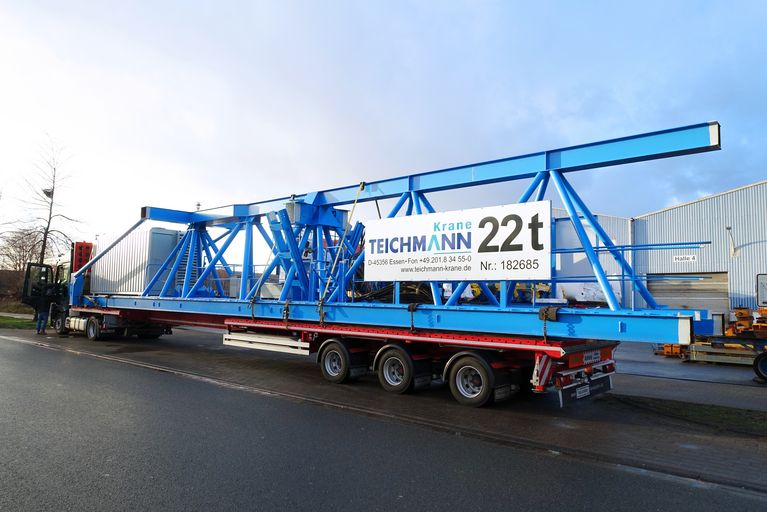

Manufacturing of the crane in Essen

Manufacturing of the crane in Essen

Manufacturing of the crane in Essen

Assembly of the crane at the customers site in Germany.

Assembly of the crane at the customers site in Germany.

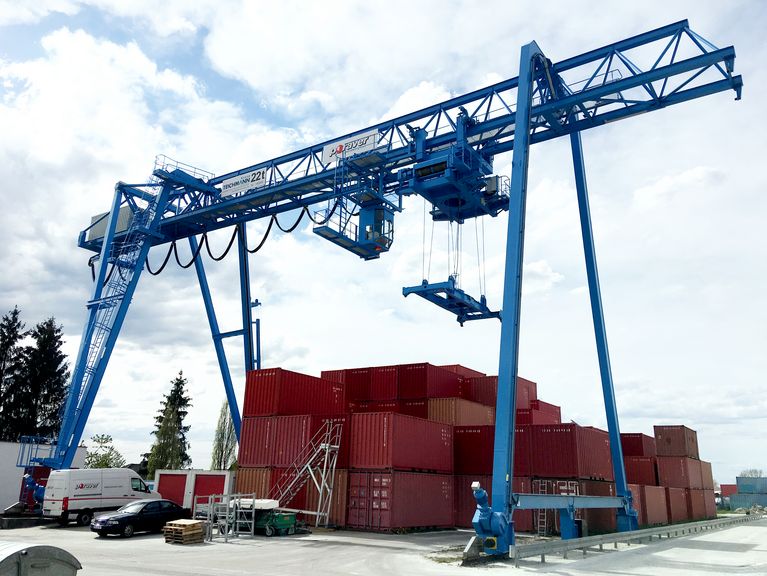

The crane will be used at the company's headquarters in Postbauer-Heng, near Nuremberg, to handle 20-foot expanded glass granule containers and will replace an existing container crane.

Made-In-Germany quality for container handling

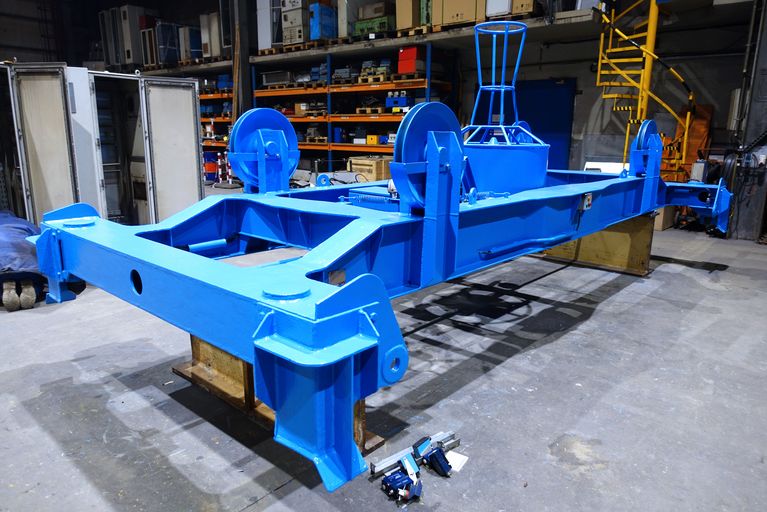

The gantry crane in tubular construction with a total bridge length of 50 m was manufactured at the TEICHMANN location in Essen. The container gantry crane is equipped with a two-rail rotatable trolley consisting of two individually and jointly movable hoists. The crane and the spreader can be operated both by cab control and by radio control. The lifting height of the crane is 13.5m which corresponds to a lifting height of 1 over 4 ISO containers.

Refurbished container crane in just 4 months

By refurbshing and adapting an existing crane, the delivery time of the like new container crane was substantially reduced for the customer. Instead of a delivery time of 12 months as it is the case for new container cranes, TEICHMANN CRANES delivered the refurbished and customer-specifically adapted crane in just 4 months. For all newly installed parts, the customer receives a manufacturer's warranty of 12 months. In addition, TEICHMANN CRANES guarantees a 12-month warranty on the entire steel structure.

Remote maintenance system for maximum system availability

For an uncomplicated crane maintenance, the crane is equipped with a remote maintenance system, which allows remote access to the built-in PLC control and the frequency converters of the crane. This allows malfunctions to be localized quickly and downtimes to be minimized.

Poraver is the world's leading manufacturer of expanded glass. Expanded glass is a versatile lightweight aggregate for high-quality building materials and industrial products. Despite its low density expanded glass is very resistant to pressure. It not only acts as thermal insulation but also absorbs sound, dimensionally stable over the long term, and resistant to fire, moisture and chemicals. Since 1983, Poraver is manufacturing expanded glass granule in Europe and North-America using a specific production process which uses 100% recycled glass.
